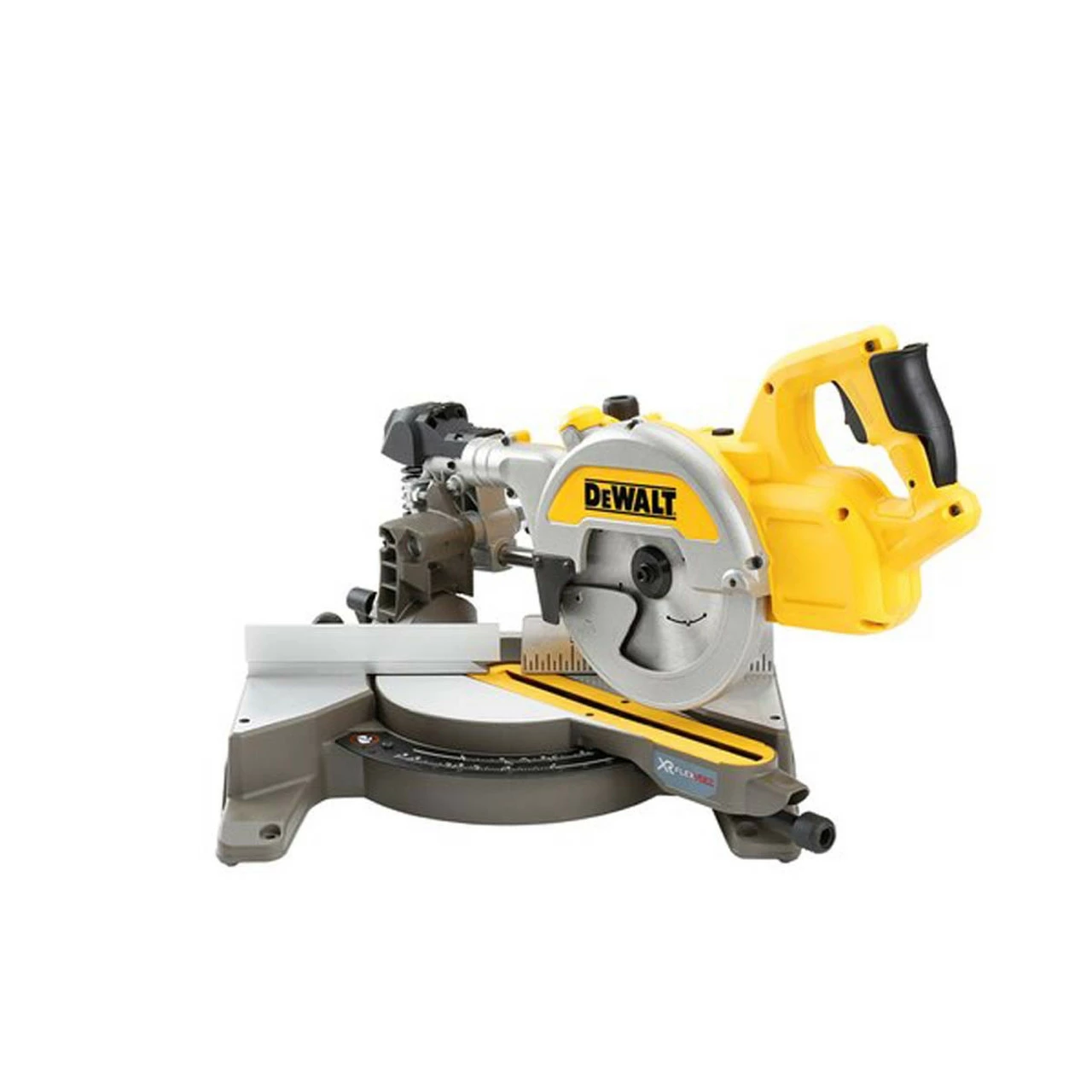

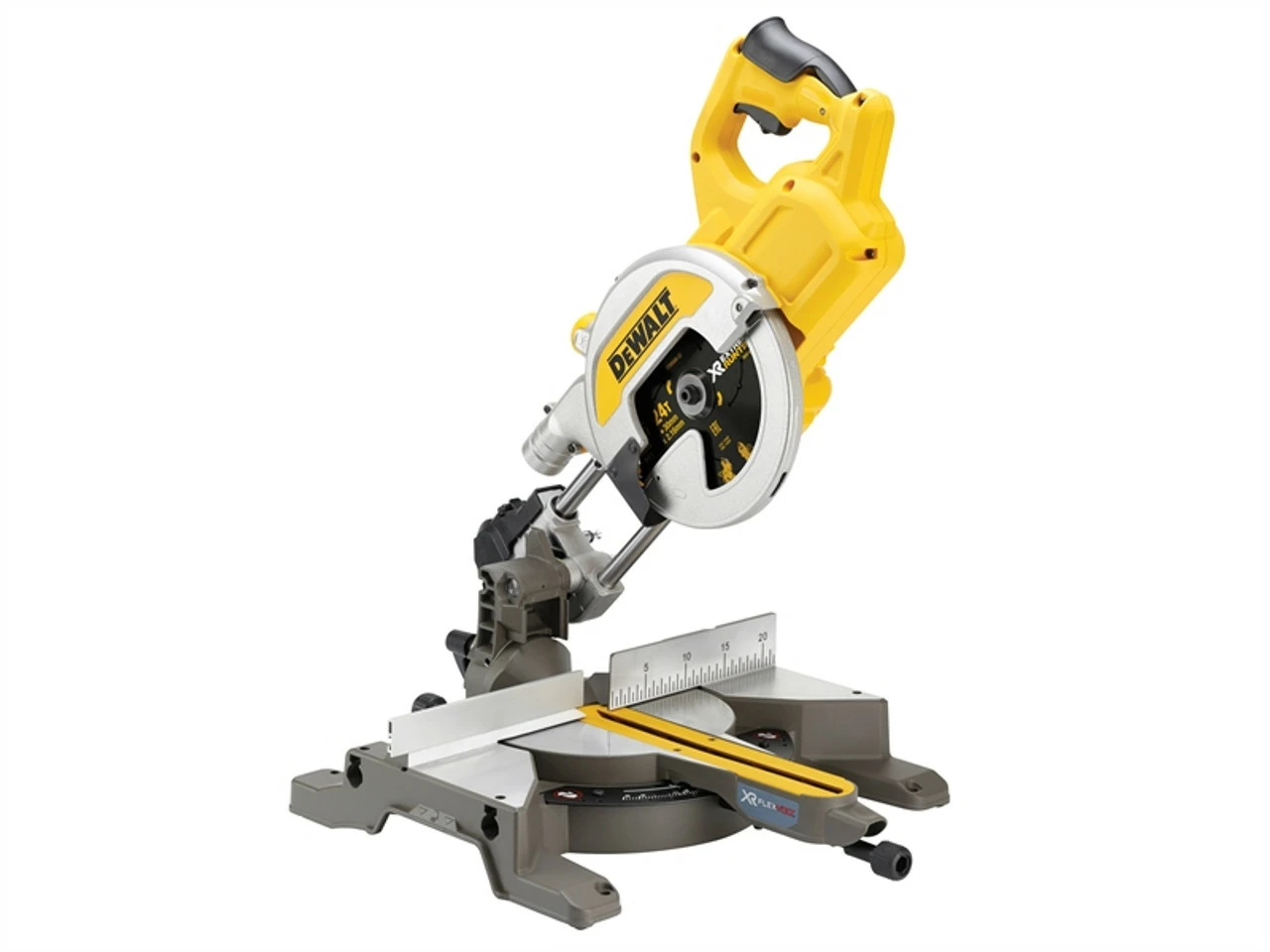

DeWalt DCS777N 54V XR Flexvolt 216mm Cordless Mitre Saw (Body Only)

DeWalt DCS777N 54V XR Flexvolt 216mm Cordless Mitre Saw (Body Only)

The DeWalt DCS777 XR FlexVolt Cordless Mitre Saw is fitted with an XPS shadow line cut indicator that provides fast, accurate alignment of the blade whilst illuminating the work piece for increased productivity, with no adjustment required.

The base and fence has been machined to meet the accuracy requirements of the most demanding applications. With a head lock function that allows the head to be fixed, restricting the traverse function for trim applications and ease of transport.

Intergrated positive mitre stops at 15°, 22.5°, 30° and 45° with a quick release mitre mechanism up to 50°. Sliding left-hand fence with measuring scale for improved material support and a compact internal rail design for a large cutting capacity whilst remaining transportable.

DeWalt XR FlexVolt batteries stand at the forefront of cordless technology. They are the world’s first convertible 18/54 Volt batteries, offering unprecedented levels of power. Provides the unique ability to power heavy-duty construction power tools whilst still being compatible with existing DeWalt XR 18 Volt products and offering increased runtime.

DCS777N Features:

• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
• 54V motor provides power and runtime for demanding construction applications
• Built on classic pull saw design improved and updated for the modern user
• Compact internal rail design for huge cutting capacity in a highly transportable format
• New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
• The base and fence have been machined to meet the accuracy requirements of the most demanding applications
• Sliding left hand fence with measuring scale for improved material support and management
• Dust extraction specifically designed to meet the needs of the professional user in heavy use applications, protection from airborn dust particles minimises health risk over long periods
• Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°

DCS777N Specification:

• Weight: 14kg
• Blade Diameter: 216mm
• Bevel Capacity: 48.0 º
• Mitre Capacity [Right/Left]: 50/50 º
• Cutting Capacity at 90°/90° (W X H): 270 X 62 MM
• Power Source: Cordless
• Battery Chemistry: Li-Ion
• Blade Bore: 30 mm
• Blade Speed: 6300.0 rpm
• Cutting Capacity at 90°/45° (W x H): 173 x 62 mm
• Cutting Capacity at 45°/90° (W x H): 189 x 62 mm
• Max. Cutting Capacity at 45°/45°: 190×48 mm
• Weight (incl. battery): 15 kg
• Depth: 550 mm
• Length: 490 mm
• Height: 590 mm
• Sound Pressure: 93 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)
• Sound Power: 104 dB(A)
• Sound Power Uncertainty: 3.9 dB(A)
• Hand/Arm Vibration – Cutting Wood: 2.1 m/s²
• Uncertainty K 1 (Vibration): 1.5 m/s²

What is included:

• 1x DCS777N 54V XR 216mm Flexvolt Cordless Mitre Saw (Body Only)
